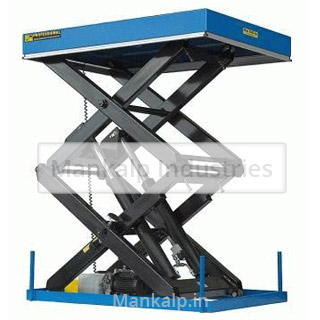

Pit Mounted Scissor Lift Table
PIT MOUNTED SCISSOR LIFT TABLE
MKP 133
Cap-1 to 10 tons
Max ht:2500 mm
Max ht:2500 mm
FUTURE INDUSTRIES offers a wide range of Lift Tables in advanced features to cater to vast requirements of clients. The AHLT Lift Table provided by us is safe & efficient and ways to endless Material Handling Applications at Distribution Center, Logistics Companies, Industries etc. Our Lift Tables are popular in the market because we don’t compromise on the quality and always endeavor to meet International Standards by stringent quality checking and using State-of-the-art Technologies in the manufacturing process.
Specifications
- Remote power pack with 4 mtr Hydraulic Hose.
- Push button control on 3.5 mtr cable.
- Hydraulic pump with built in overload relief.
- Full length deck beam for maximum support.
- Solid plate scissor legs for maximum rigidity.
- Chequered Plate deck and lip with chain.
- All pivot points equipped with lubricated nipples.
- Lowering brake valve to prevent platform free fall.
- Completely sealed, weather resistant glinders and piston.
- Motor, controls, push button factory pre wired and tested.
Specifications
| Product Code | MKP-133 | MKP-133 | |
| Rated Capacity | tons | 1 / 3 / | 5 / 10 / |
| Max Lifting Height | mm | 6000 / | 6000 / |
| Platform Size ( L x W ) | mm | 2600 x 1500 | 3500 x 2200 |
| Railing Height | mm | 1000 / | 1000 / |
| Self Weight | tons | 1.5 - 2.0 | 2.5 - 4.0 |
