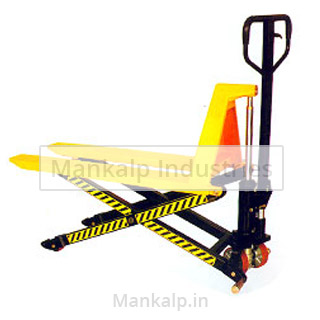

High Lift Pallet Truck
HIGH LIFT PALLET TRUCK
MKP 105
Cap: 800/1000 kgs
Lifting ht: 800/1000 mm
Lifting ht: 800/1000 mm
We are equipped with all the facilities required in manufacturing of excellent high lift hand pallet trucks. Our talented team of engineers has vast experience of this field, hence they always welcome customers’ suggestions and specifications to design and develop the best products. The challenger 08 / 10 AHLPT Hand Pallet Truck is one of the premier quality trucks for materials handling.
Features
- 800 / 1000 kg capacity hand pallet truck.
- Easy to pull chassis - Ideal for regular light duties and in the back of lorries.
- Hardwearing nylon rollers.
- Single nylon load rollers for great maneuverability.
- Totally sealed pump unit (impervious against air, water or dirt) incorporating an overload release valve.
- One - piece "C" section forks for greater strength.
- Fully adjustable push rods to aid level running.
- Powder coated paint finish for longer life.
- Bushed metal-to-metal parts - No need to grease!!
- Main parts two -year warranty.
Specifications
| Model No. | MKP-105 | ||
| Capacity | tons | 0.8 /1 | 0.8 /1 |
| Min. Fork Height | mm | 90 | 90 |
| Max. Fork Height | mm | 800 / 1000 | 800 / 1000 |
| Steering Wheel | mm | 180 x 50 | 180 x 50 /M.S./PU/UHMW |
| Load Roller Tandem | mm | 82 x 70 | 82 x 70 /CI/MS/PU/UHMW |
| Size Of Fork | mm | 150 x 65 | 150 x 65 |
| Overall Fork Width | mm | 550 | 685 |
| Fork Length | mm | 1150 | 1220 |
| Self Weight | kg | 127 | 127 |
