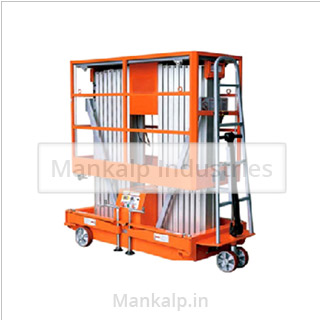

Dual Mast Arial Work Platform
DUAL MAST ARIAL WORK PLATFORM
MKP 186
Max ht:16 Meter
Cap:350 Kgs
Cap:350 Kgs
Specifications
| Model No. | MKP-186 | MKP-186 | MKP-186 | MKP-186 | MKP-186 | |
| S.W.LQ | kg | 125 | 125 | 125 | 200 | 200 |
| Working height (H1) | m | 8.5 | 10 | 10 | 14 | 16 |
| Platform floor height(H2) | m | 6.5 | 8 | 8 | 12 | 14 |
| Overall length (A) | m | 1.2 | 1.2 | 1.42 | 1.84 | 1.84 |
| Overall Width (C) | m | 0.69 | 0.69 | 0.84 | 0.89 | 0.89 |
| Overall height (B) | m | 1.98 | 1.98 | 1.98 | 2.08 | 2.03 |
| Platform Size | m | 0.60 x 0.60(D) | 0.60 x 0.60(D) | 0.63 x 0.65(D) | 1.45 x 0.60(D) | 1.45 x 0.60(D) |
| Ground Clearance | m | 0.06 | 0.06 | 0.06 | 0.08 | 0.08 |
| Wheelbase | m | 1.07 | 1.07 | 1.11 | 1.42 | 1.42 |
| Lifting Motor (AC) | VDC / kw | 110-230/0.75 | 110-230/0.75 | 110-230/0.75 | 110-230/1.5 | 110-230/1.5 |
| Lifting Motor (DC) | VDC / Kw | 12/1.5 | 12/1.5 | 12/1.5 | 12/2.5 | 12/2.5 |
| Up/Down speed | sec | 75/70 | 85/81 | 44/38 | 75/54 | 80/62 |
| Battery | V/Ah | 1 x 12V / 120 Ah | 1 x 12V / 120 Ah | 2 x 12/150 | 2 x 12/150 | 2 x 12/150 |
| Integrated Charger | V/A | 41985 | 41985 | 42339 | 42339 | 42339 |
| Tyre (Back Wheel) | mm | 250 × 75 | 250 × 75 | 180 × 50 | 200 × 50 | 200×50 |
| Tyre (Front Wheel) | 6 in | 6 in | 5 in | 180 X 50 mm | 180 X 50 mm | |
| Weight (AC) | kg | 310 | 340 | 450 | 825 | 875 |
| Weight (DC) | kg | 365 | 390 | 485 | 865 | 915 |
